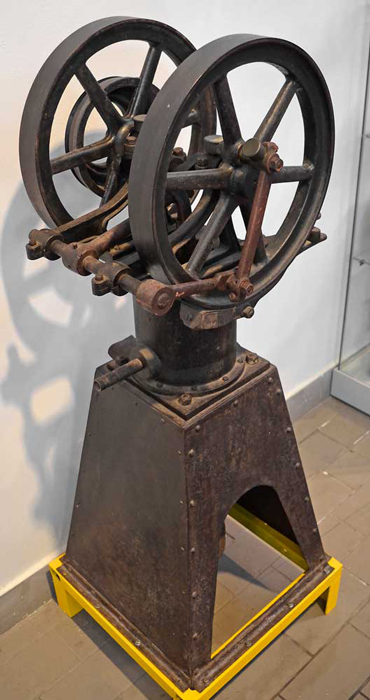

Motore Stirling L. Heinrici Machinenfabrik 100
Inizio '900



94

Description

The company Louis Heinrich Maschinenfabrik, founded in 1876, was one of the leading manufacturers of stationary engines of small and medium size, operating according to the Stirling cycle. These engines feature simple design, noiseless operation and can be feed with various fuels (both liquid and gaseous). Stirling engines were developed between the late 800 and early '900, before the spread of internal combustion engines. Usually they were employed to drive small industrial or laboratory machinery, as well as used for domestic equipment such as to drive hydraulic pumps or fans. Nowadays these engines are quite rare and are collected by many enthusiasts.


Technical specifications

ManufacturerLouis Heinrici Machinenfabrik, Zwickau, Germany, 1900s
Descriptionstationary, single-cylinder, Stirling engine
Stroke60 mm
Bore102 mm
Displacement490 cm³
Power0.125 hp at 350 rpm
Valvetrain systemby sliding pistons
Fuel Feeding systemwith a small burner
Cooling systemsupplied by liquid or air
Lubrication systemwith multiple lubricators
Mass60 kg


Application

Commonly used in workshops to drive small operating machines.



Courtesy of the Collection of chemical laboratory equipment (Sistema Museale of the University of Palermo).
