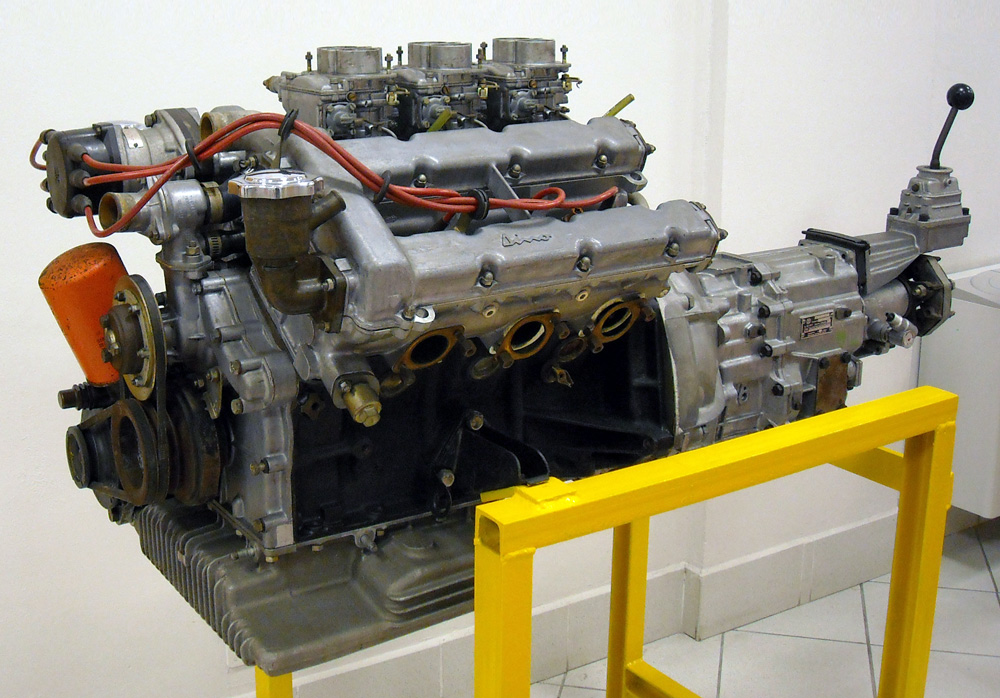

Motore FIAT tipo 135C - Dino 2400
1969 - 1976



53

Description

The FIAT Dino 2400 engine has been introduced in 1969, replacing the previous 2000 cm³ model. The new engine featured a cast iron cylinder block with a better reliability and a greater power output (180 hp). Thanks to its high performance, it has been used for the renewed FIAT Dino coupè and spider as well as the new SEFAC (Ferrari) Dino 246 GT/GTS. Starting from 1973 the engine (type 135C) has been also used for the production of the Lancia Stratos sport car, which reached numerous successes in several international competitions, winning the Group 4 world rally championship in 1974, 1975 and 1976.


Technical specifications

ManufacturerFIAT, Turin, Italy, from 1969 to 1976
Type135C.000
DescriptionV-65° 6-cylinder engine, cylinder block, cast iron cylinder block, heads and oil pan made of aluminium alloy
Stroke60 mm
Bore92.5 mm
Displacement2419 cm³
Compression ratio9.0
Power180 hp a 6600 rpm
Torque216 Nm a 4600 rpm
Specific power74.4 hp/litre
Valvetrain system2 overhead valves per cylinder, operated by two overhead camshafts in each head, driven by double chains and gears transmission
Fuel feeding systemwith three twin-barrel gasoline carburettor Weber 40 DCNF
Ignition systemone spark plug per cylinder fed by a Magneti Marelli distributor, controlled by a Dinoplex capacitor discharge ignition system, firing order: 1-4-2-5-3-6
Cooling systemliquid-fed by a centrifugal pump
Lubrication systemforced by a gear pump
Clutchsingle-disc
Transmissionwith a ZF S5-18/3 manual gearbox, 5 speed + RM


Application

FIAT Dino 2400 (coupé and spider, 1969-1972)

Dino 246 GT and 246 GTS (coupe 2 seater, 1969-1973), with the same engine but different powertrain layout

Lancia Stratos (coupé 2 seater, 1974-1976), with the same engine but different powertrain layout
