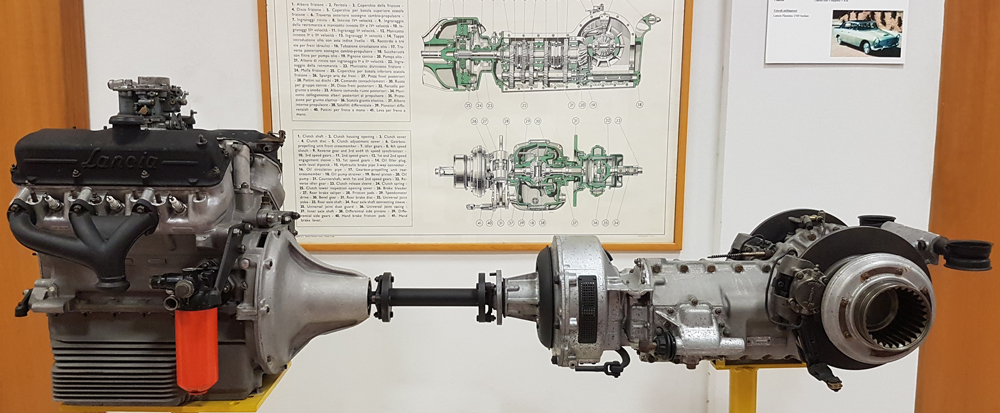

Motore e trasmissione Lancia Flaminia 2500
1957 - 1961



48

Description

The Lancia engine 813.00 was manufactured by Lancia from 1957 for the Flaminia sedan. The engine was strictly derived from that of Lancia Aurelia, which was the first V 60° six-cylinder mass-produced engine. The original design, nowadays widely used by many manufacturers, was developed in 1940s by Franco De Virgilio, head of the Special Studies and Patent Office at Lancia. In both Aurelia and Flaminia models the engine features an extensive use of aluminium alloy and it is coupled with a fine transaxle transmission, used for a better on-board mass balance in order to improve the vehicle dynamic performance. The Flamimia V6 engine underwent continuous development and remained in production in different versions (also for sport models) up to 1970.


Technical specifications

ManufacturerLancia, Turin, Italy, from 1957 to 1961
Type813.00
DescriptionV-60° 6-cylinder engine, cylinder block, heads and oil pan made of aluminium alloy with cast iron cylinder liners
Stroke81.5 mm
Bore80 mm
Displacement2458 cm³
Compression ratio7.8
Power102 hp at 4600 rpm
Torque183 Nm at 3500 rpm
Specific power41.5 hp/litre
Valvetrain system2 overhead valves per cylinder, operated by pushrods and rocker arms drived by a camshaft between the cylinder banks
Fuel feeding systemwith a twin-barrel gasoline carburetor Solex C35 PAAI
Ignition systemwith one spark plug per cylinder fed by an inductive discharge system with a high-voltage distributor, firing order: 1-4-3-6-5-2
Cooling systemliquid-fed by a centrifugal pump
Lubrication systemforced by a gear pump, with an oil cooler
Transmissionclutch, gearbox and differential gear train into one integrated aluminium alloy assembly at the rear axle ("transaxle" layout)
Clutchsingle-disc type
Transmissionwith a 4 speed + RM manual gearbox


Application

Lancia Flaminia 2500 sedan
